Get ready to elevate how you shape,
feel, and experience your performance

Become the Instrument

Digital music tools often struggle to capture the natural flow of a performance.

Constellation is here to change that by turning your body motion into precise control—bridging the gap between physical expression and technology.

It’s a different way to perform, create and express yourself.

Order Now

The Modern Performer is Trapped Between Expression and Control

Digital music tools have revolutionized sound creation, but most still require you to stop performing to adjust parameters. Knobs, screens, and menus interrupt the natural flow of creativity.

The result? Performers are forced to choose between spontaneity and precision.

About Constellation

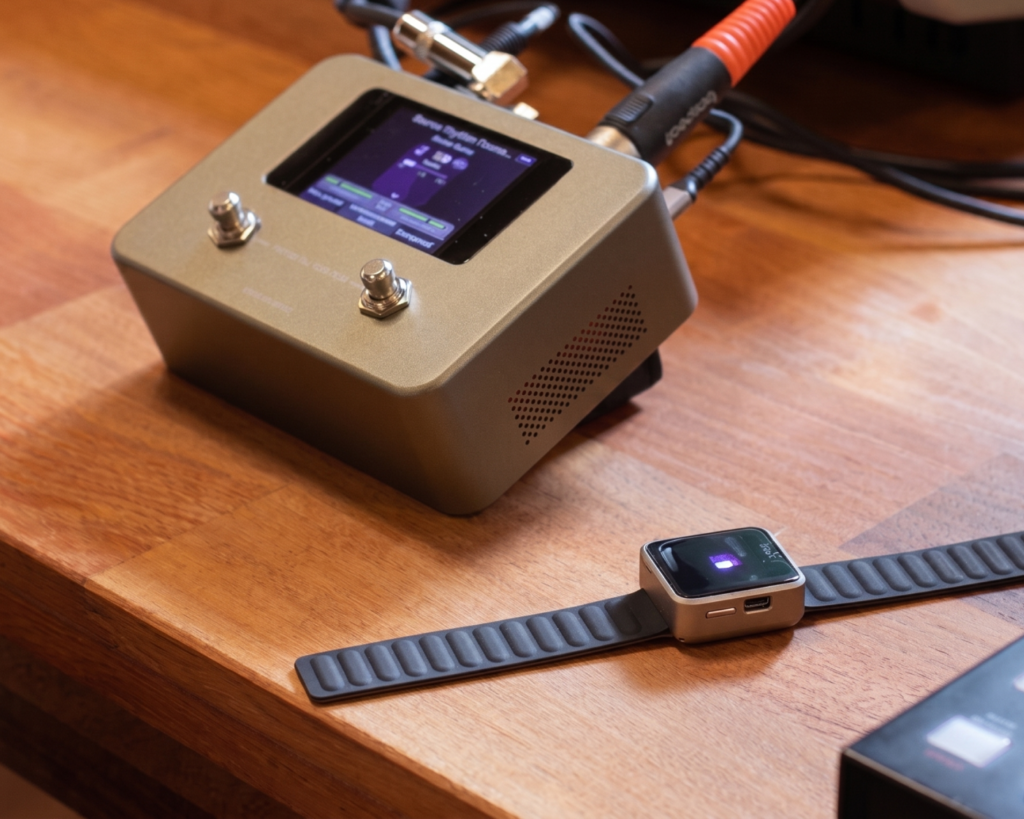

Constellation consists of a Ground Central hub and wireless Satellites.

Each Satellite captures motion from different parts of your body—arms, ankles, hips, head—translating movement into sound and control data with precision.

Whether you’re performing live or producing in the studio, Constellation gives you direct, physical control over your music.

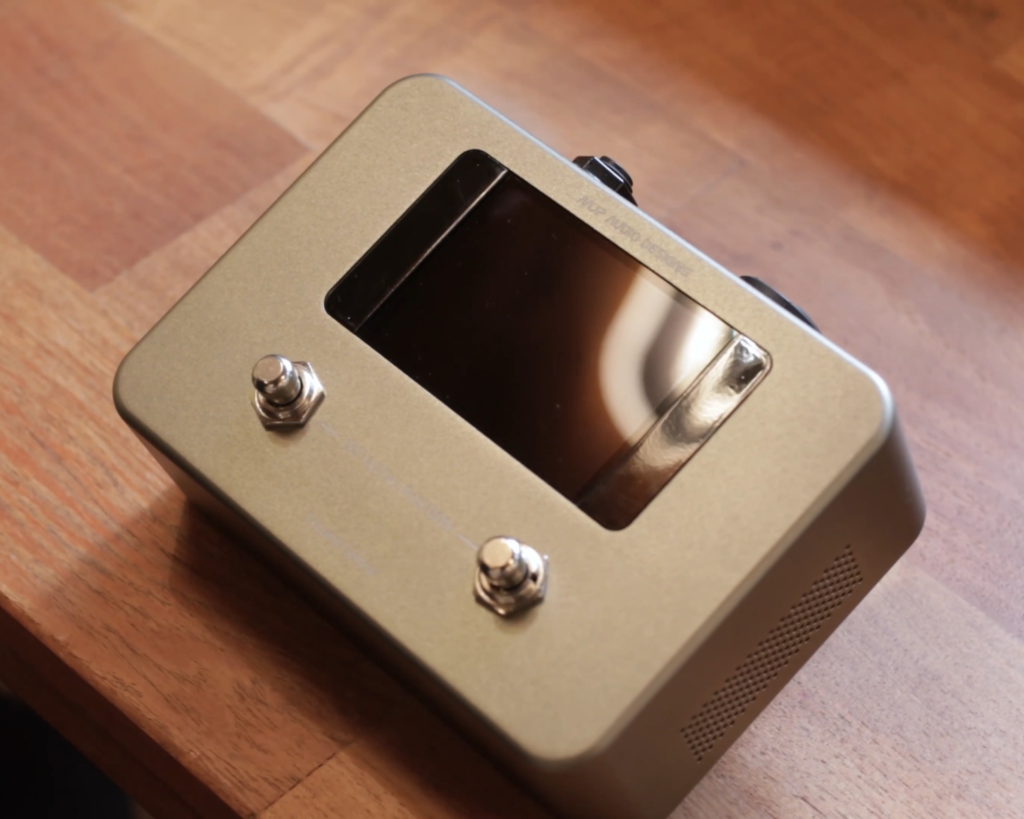

Ground Central

Ground Central is the system’s brain.

All Satellites connect here, and all the DSP processing happens inside this unit.

It features a 2.8-inch color display with an intuitive interface for quick setup and control. Two built-in footswitches let you place it on your pedalboard and control it hands-free.

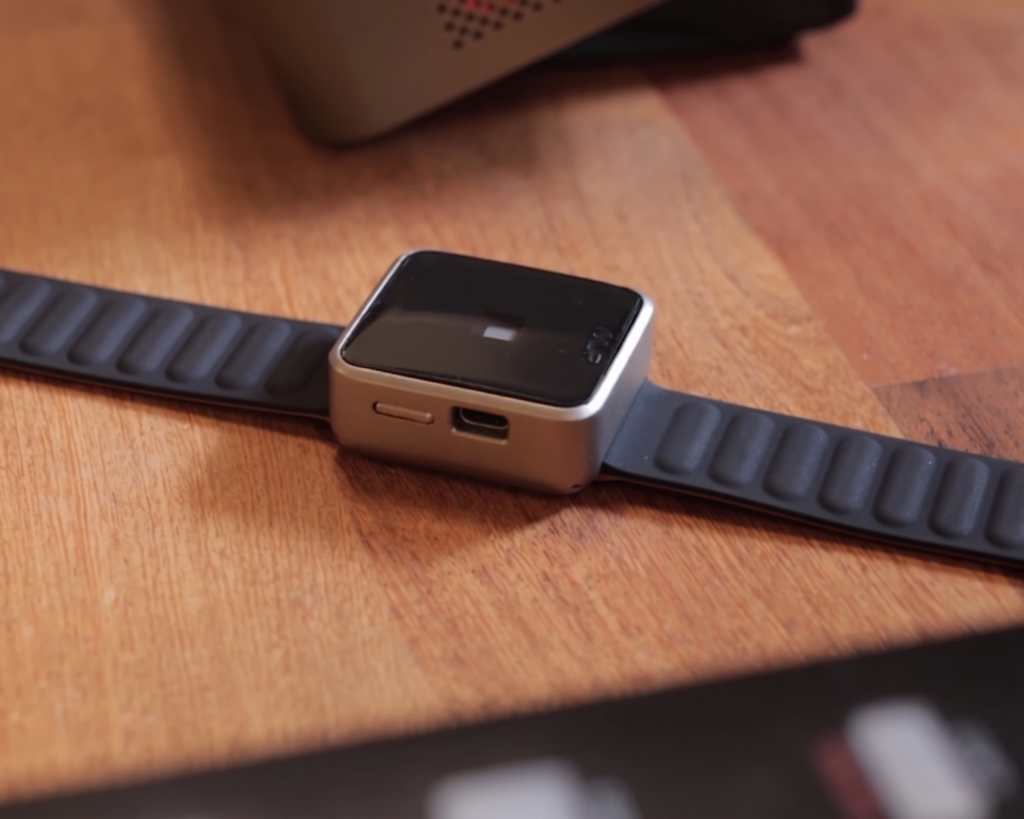

Satellites

Satellites are wearable devices with a 9-axis IMU sensor (accelerometer, gyroscope, magnetometer), a MEMS mic, RGB LED, and haptic feedback motor.

They connect to Ground Central via a custom RF link—no Bluetooth® or Wi-Fi®—for near zero-latency response.

Rechargeable Li-ion battery with USB-C charging.

The back panel uses interchangeable expansion cards—upgrade your I/O without replacing the entire unit. We’re developing cards with different configurations. Ground Central currently ships with the XLR Audio Card but more Cards will soon become available.

Tech Specs

Ground Central
– Powered via 9-12V input (center negative) or USB-C
– Hi-res 2.8″ Color LCD
– 2 Soft touch foot switches
– Anodized Aluminum Enclosure
– 140 w x 100 d x 52 h (mm) / 4.5 w x 4.3 x 2.0 (in)

Satellites
– 9 axis IMU (accelerometer, gyro, magnetometer)
– High brightness RGB LED
– Plastic Enclosure
– Magnetic Strap

I/O
– USB-C connector for power, remote control and firmware upgrades.
– MIDI DIN-5 output.
– Combo XLR / TRS input with -12 to +40 dB of digitally-adjustable analog gain.
– The XLR connector can supply +48V phantom power for condenser or ribbon microphones.
– Left / right TRS balanced outputs.

Expansion Cards

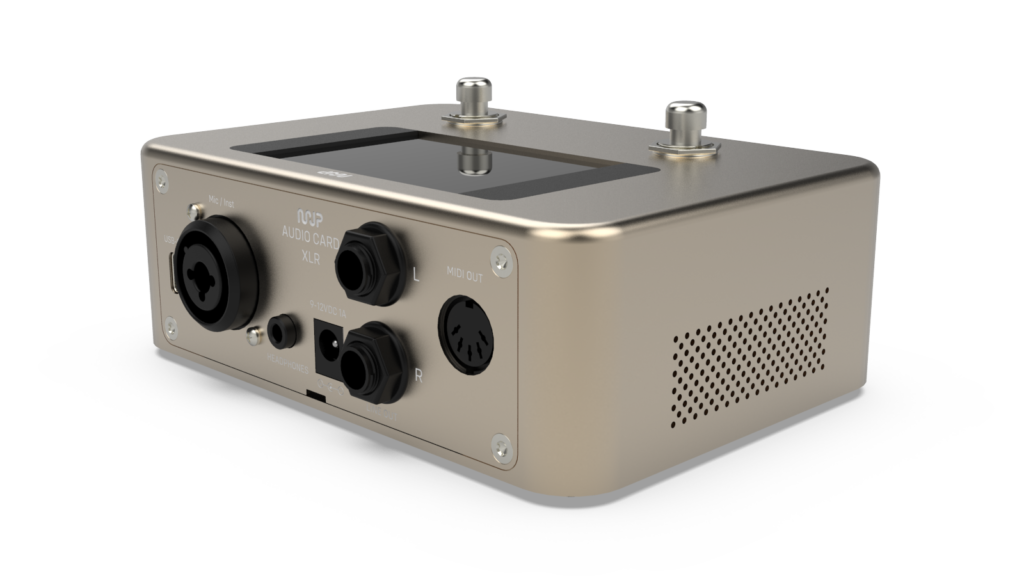

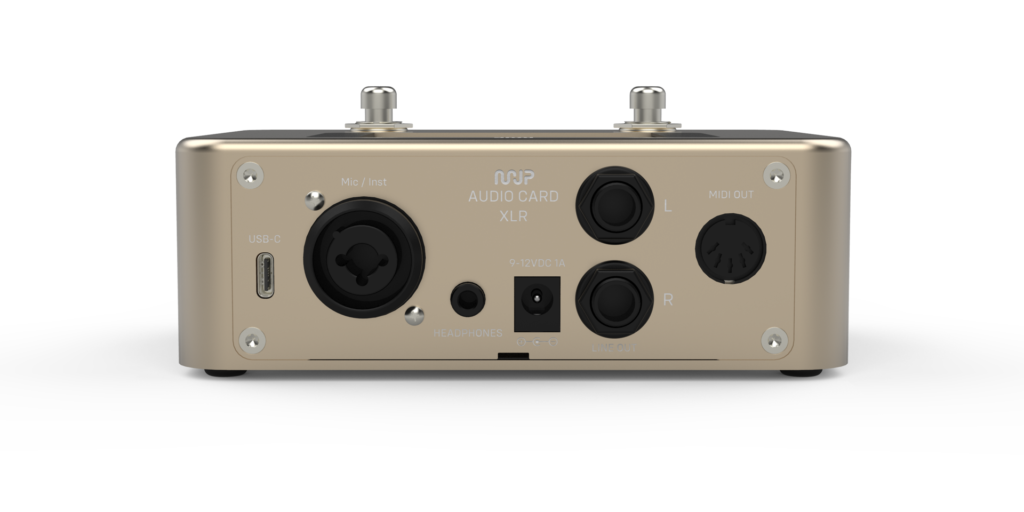

XLR Audio Card

  • XLR / TRS input (combo)
  • 48V Phantom power (XLR only)
  • 1/8″ Headphones output
  • 9-12V 2.1mm barrel power input (center negative)
  • L/R balanced TRS output

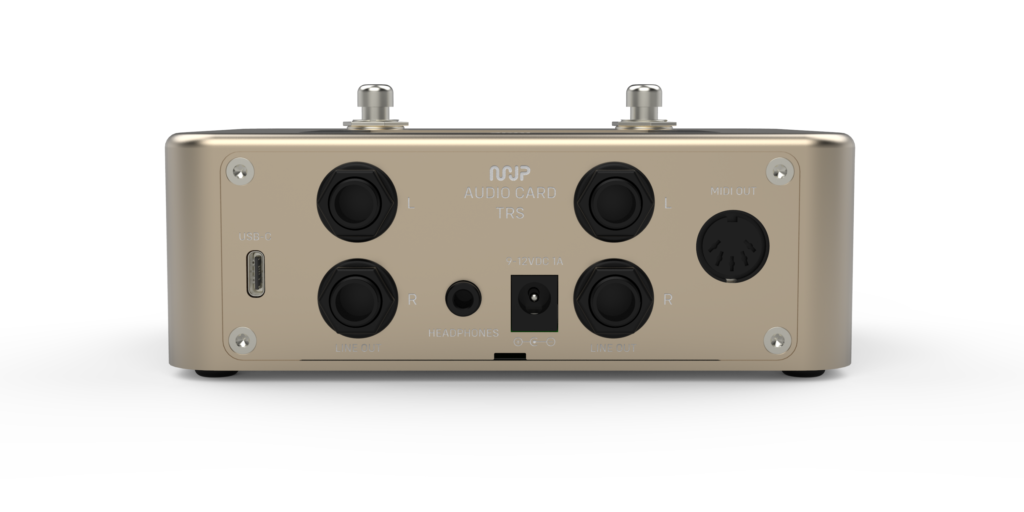

TRS Audio Card

  • L/R balanced TRS input
  • 1/8″ Headphones output
  • 9-12V 2.1mm barrel power input (center negative)
  • L/R balanced TRS output

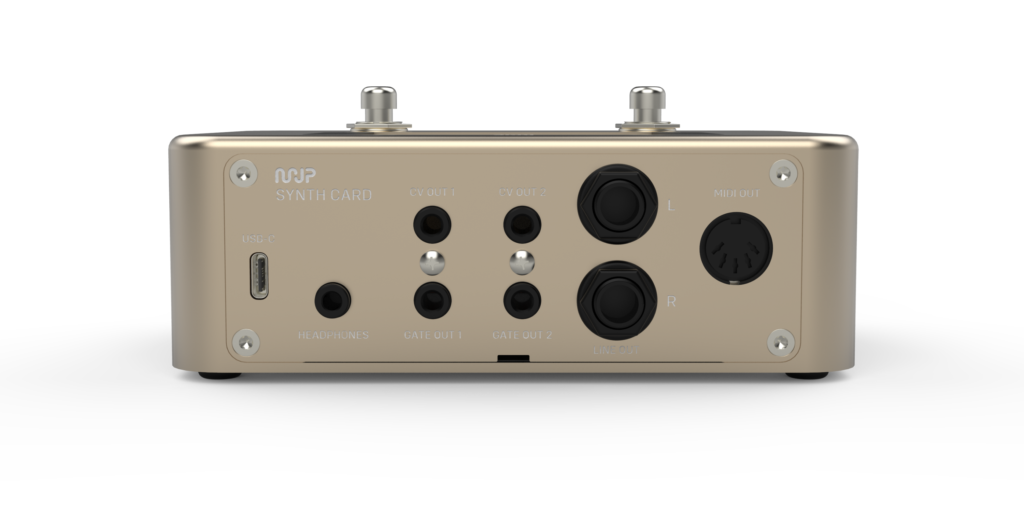

Synth Card

  • 2x CV outputs
  • 2x Gate outputs
  • 5/10V range selection
  • L/R balanced TRS output

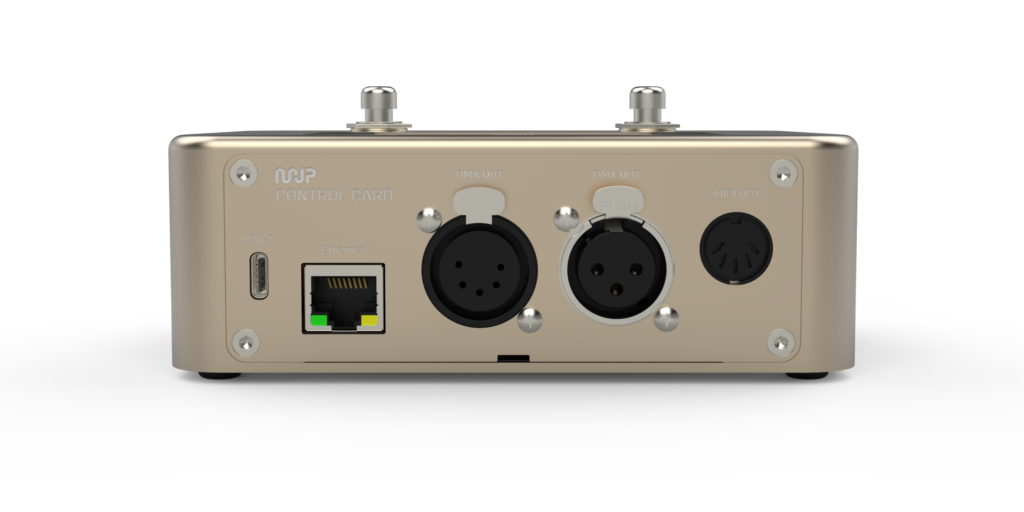

Control Card

  • 10/100Mbps Ethernet
  • DIN-5 DMX output
  • XLR DMX output

More information available in the Documentation
